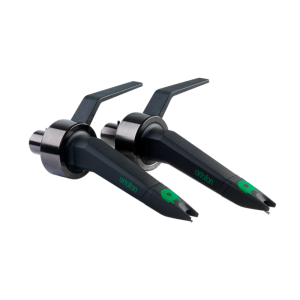

Ortofon Concorde MK2 Twin Mix

A GROOVY ALL-ROUNDER FOR NEWCOMERS. PROVIDES REASONABLE OUTPUT AND BALANCE OF SOUND QUALITY WITH TRACKING ABILITY. The MIX is a general-purpose model for scratch and back-cueing, provides great performance and durability. It has a good quality spherical stylus, a solid cantilever, and serves general purposes well. It offers both reasonable output, high sound quality and a good tracking ability for virtually any style of music. With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges. Excellent price-to-performance ratio.

Output voltage at 1000Hz, 5cm/sec. – 6 mV
Channel balance at 1kHz – 1,5 dB
Channel separation at 1kHz – 20 dB
Channel separation at 15 kHz – 15 dB
Tracking ability at 315 Hz at recommended tracking force – 100 μm
Compliance, dynamic lateral – 14 μm/m N
Stylus type – Spherical R 18 μm
Tracking force range – 2 – 4 g
Tracking force recommended – 3 g
Internal impedance, DC resistance –  700 Ohm
Internal inductance –  450 mH
Recommended load resistance –  47 kOhm
Recommended load capacitance –  200-600 pF
Cartridge weight – 18,5 g
Replacement stylus unit – MIX
